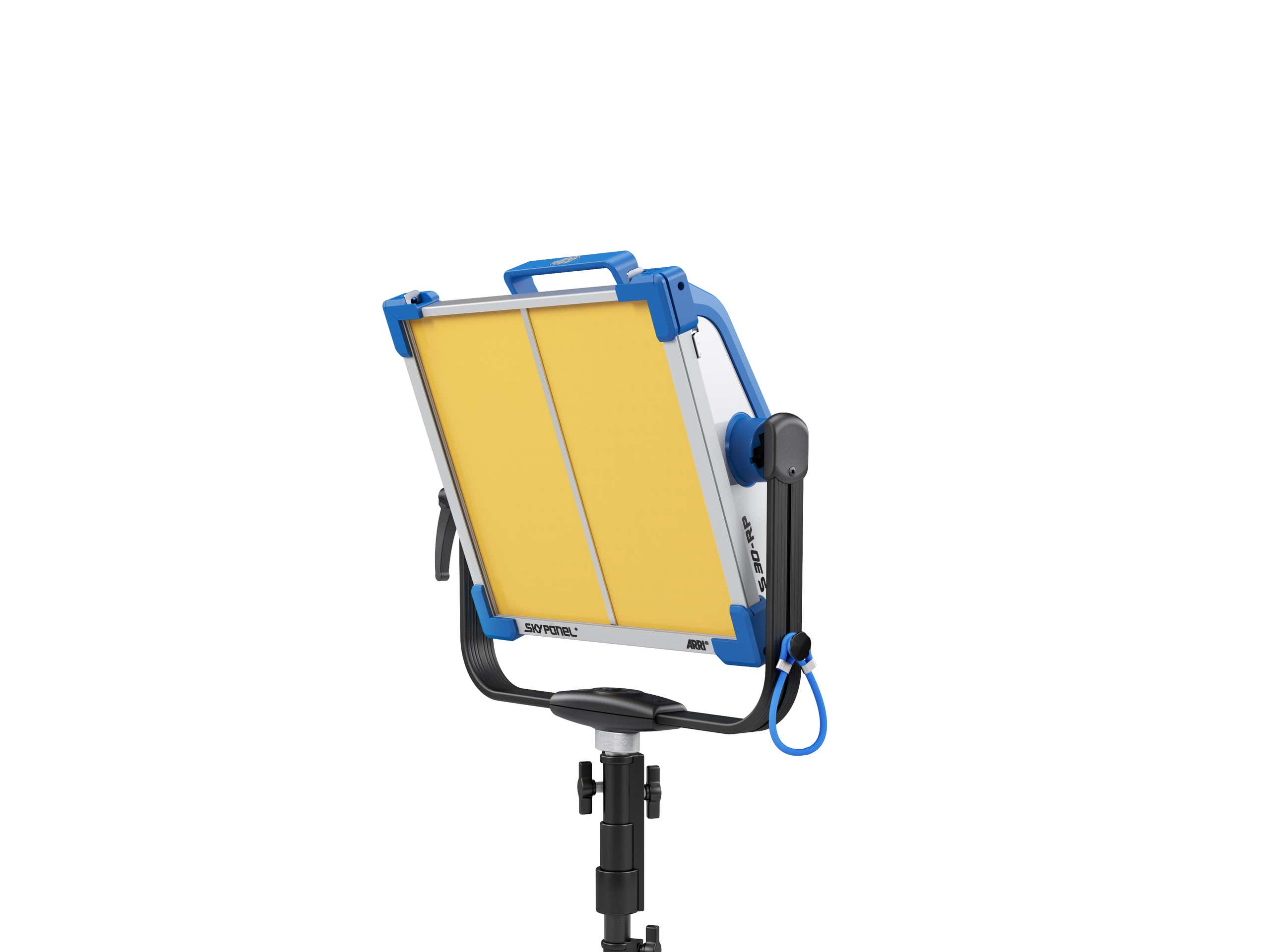

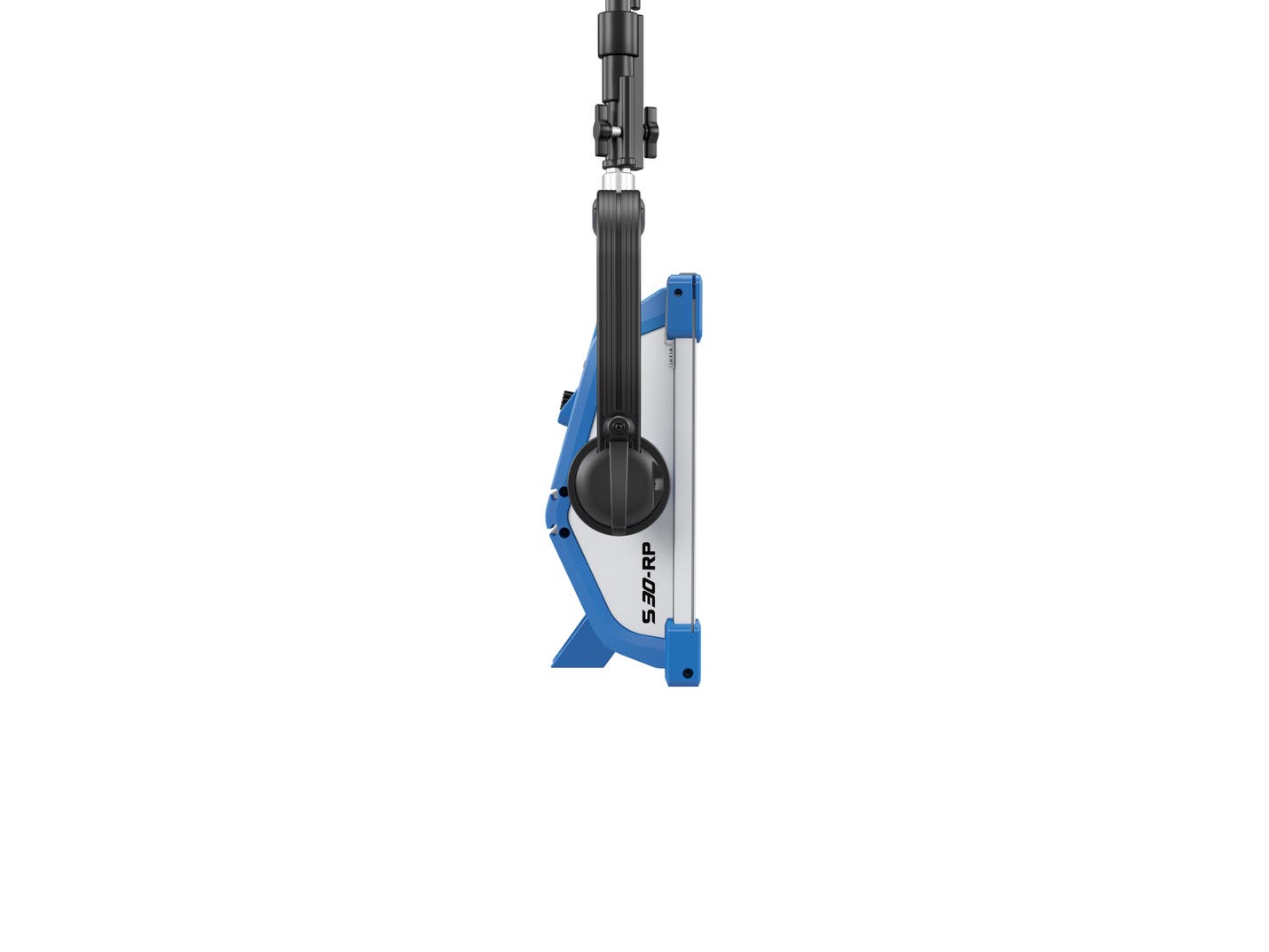

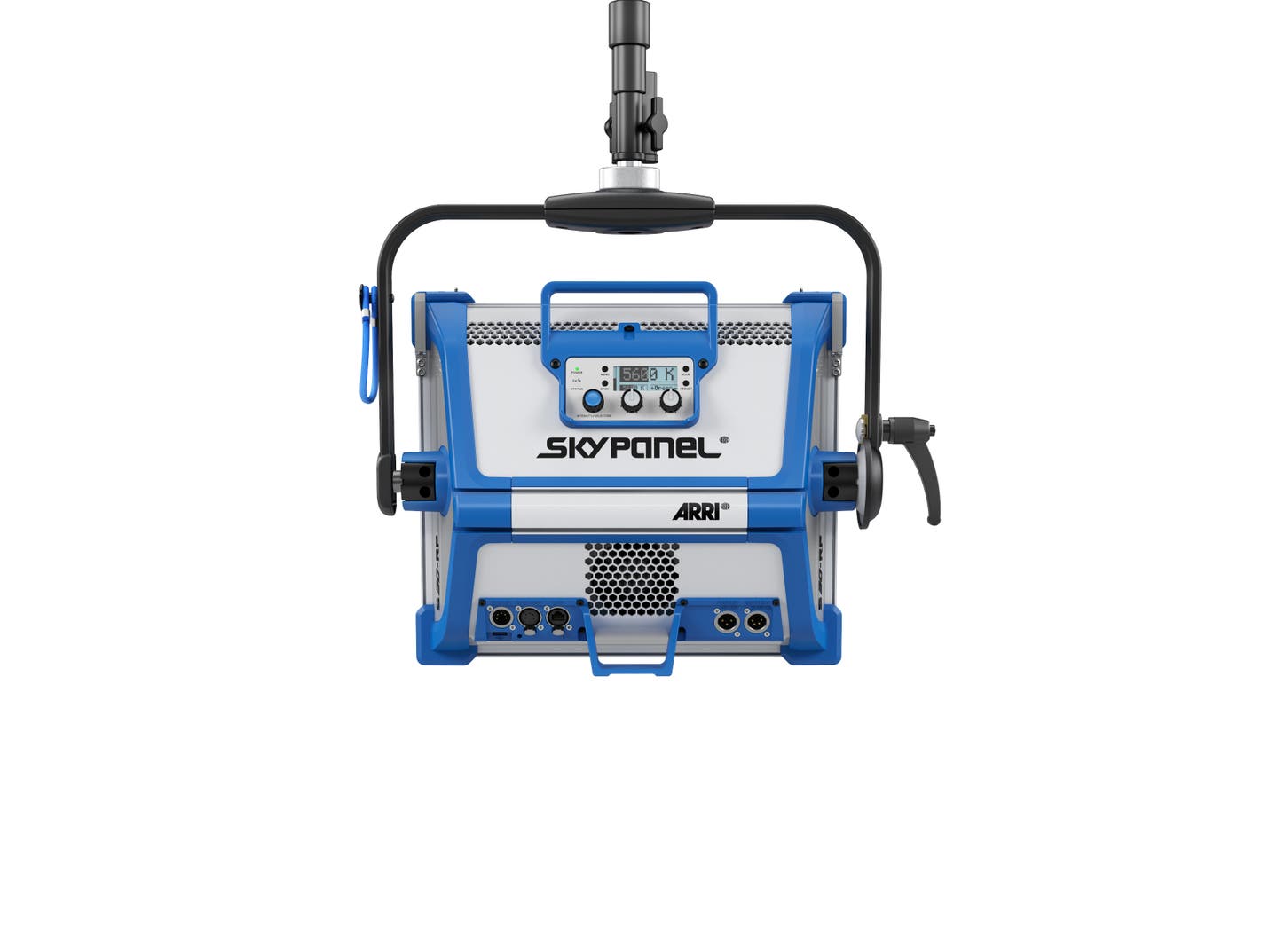

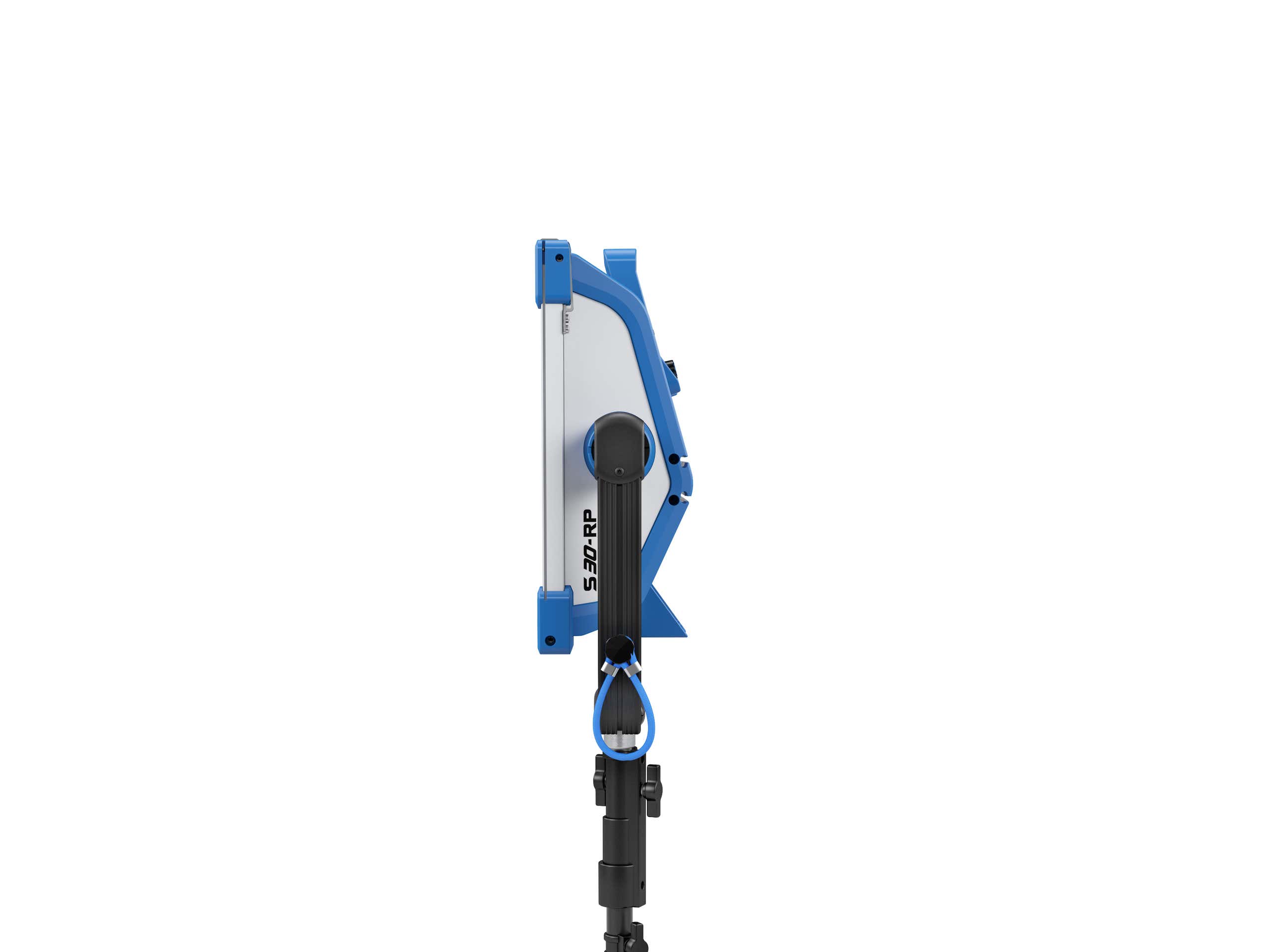

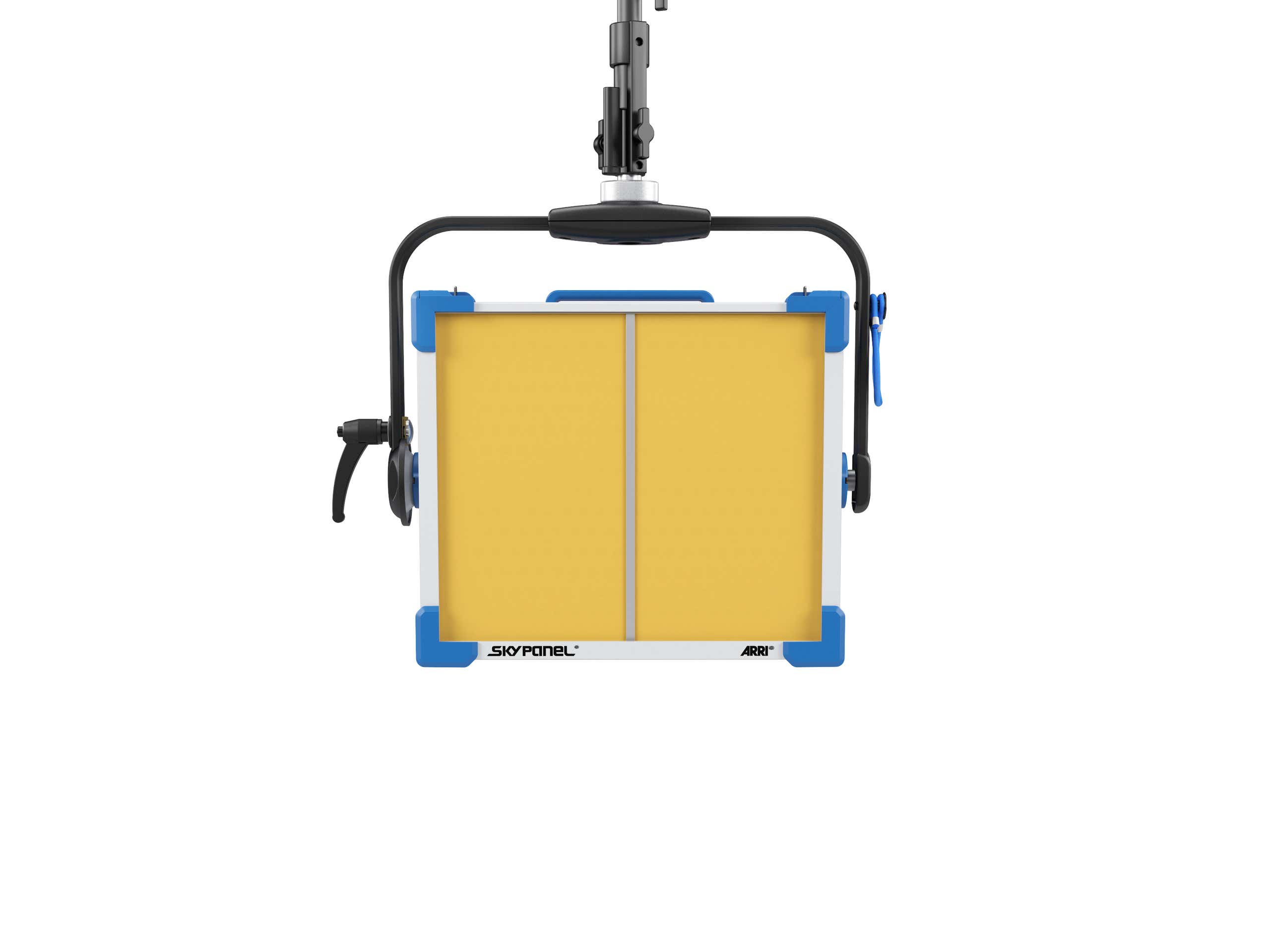

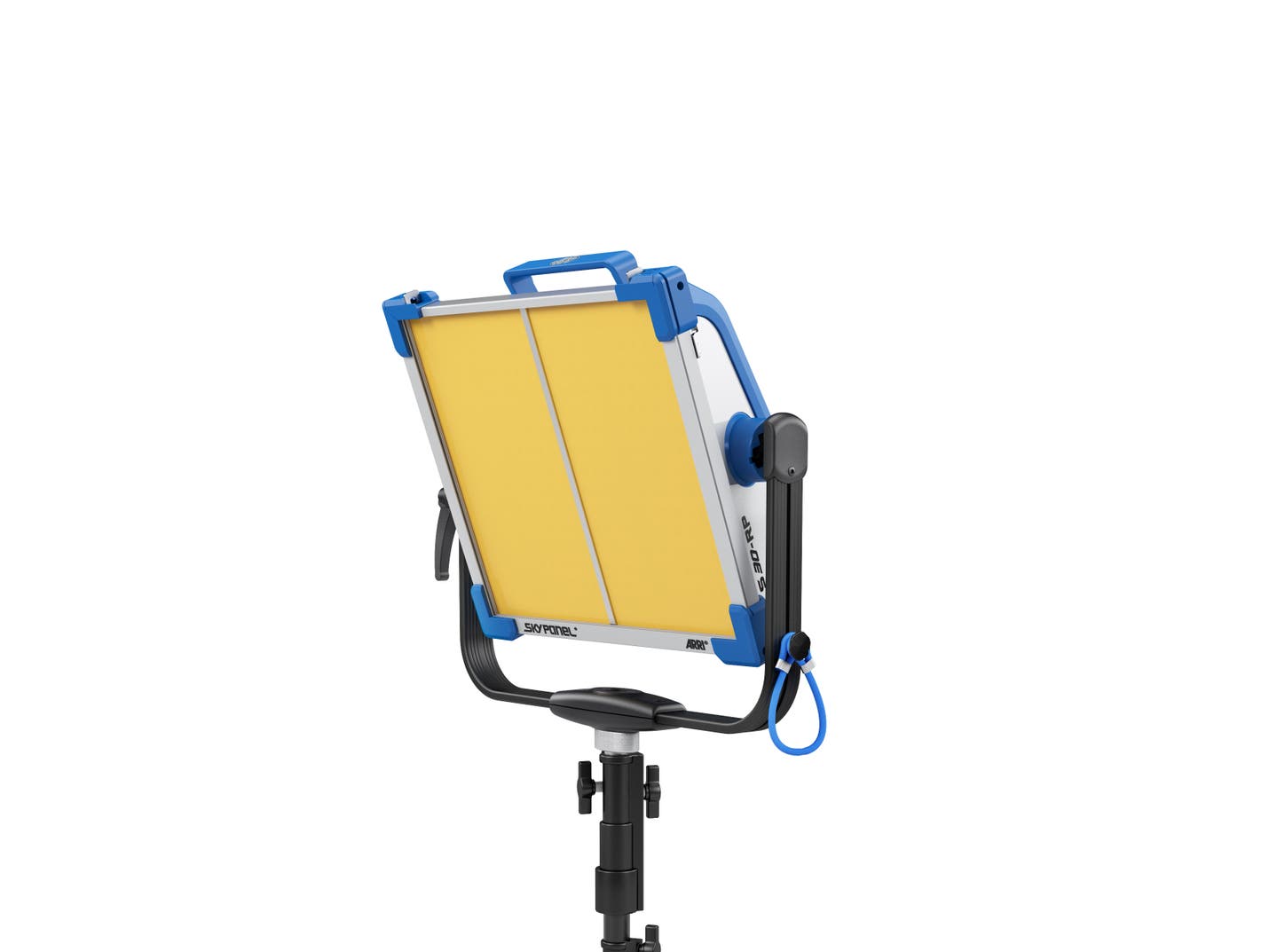

ARRI SkyPanel S30-RP
The SkyPanel Family. Different sizes for different applications.
SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light.
Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 1 kW tungsten soft light or a 3 kW tungsten space light, the SkyPanel S30 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.
Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include an on-board battery input for mobile applications, LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.
- Series SkyPanel
- Model S30-RP
- Optical System Remote Phosphor Panel
- Light Aperture / Lens Diameter in mm355 x 300 mm
- Beam Angle 105° (Half Peak Angle)
- Weight in kg net Manual Version: approx. 7 kg, Pole Operated Version: approx. 9 kg
- Weight in kg packed*Manual Version: approx. 14 kg, Pole Operated Version: approx. 16 kg
- Measurements (HxWxL) incl. Pin in mm Manual Version: 499 x 507 x 133 mm, Pole Operated Version: 567 x 504 x 133 mm
- Measurements (HxWxL) excl. Pin in mm Manual Version: 426 x 507 x 133 mm, Pole Operated Version: 452 x 504 x 133 mm
- Measurements (HxWxL) Packed size in mm 470 x 665 x 300 mm
- Measurements (HxWxL) Packed size in inch 18.5 x 26.2 x 11.8"
- Handling Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt
- Mounting 16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo.Pin) / 28 mm Spigot (Junior Pin)
- Tilt Angle +/- 90°
- Lamphead Voltage Input 48 V DC
- Power Consumption 200 W Maximum
- Lamphead Power Connection Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
- Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
- Battery DC Voltage Range 23 to 36 V DC
- Battery Mode Light Output 100 % of total output
- White Light Changeable Remote Phosphor Panels: 2,700 K; 3,200 K; 4,300 K; 5,600 K; 6,500 K; 10,000 K & Chroma Green
- Color Temperature Tolerance 4 to 5 SDCM
- Color Rendition 2,700K: CRI > 98, TLCI > 98, 3,200K: CRI > 98, TLCI > 98, 4,300K: CRI > 97, TLCI > 96, 5,600K: CRI > 97, TLCI > 96, 6,500K: CRI > 96, TLCI > 94, 10,000K: CRI > 92, TLCI > 88
- Dimming 0 to 100 % continuous
- Control On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
- Wireless Control Not integrated, via SkyLink
- Remote Device Management (RDM) DMX Setup, Hour Counter and Standard RDM Commands
- Software / Mini-USB Interface Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive
- Housing Color Blue/Silver, Black
- Ambient Temperature Operation -20 to +45° C (-4 to +113° F)
- Protection Class / IP Rating III / IP 20
- Estimated LED Lifetime (L70) 50,000 hours
- Estimated Color Shift Over Lifetime (CCT) +/- 5 %
- Certifications CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE
