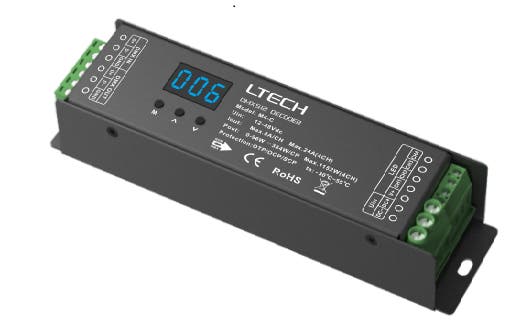

4CH DMX CV LED Dimmer 12-48V DC

With the standard RDM (Remote Device Management) protocol, M4-C supports DMX512 signal bi-directional communication, achievesremote management of reading and writing DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100% dimming  or different lighting effects. It can work with DIM, CT, RGB, RGBW constant
voltage LED lamps. M4-C can be operated in DMXmode or in customized mode.

• Input Voltage: 12-48Vdc
• Output Current: Max.8A/CH Totalt Max.24A(4CH)
• Output Power: 0-96W...384W/CH  Max.1152W(4CH)
• Dimming Range: 0-100%
• Input Signal: DMX512, RDM
• Working Temp: -30°C-55°C
• Package Size: L175×W46×H30(mm)
• Dimensions: L187×W52×H36(mm)
• Weight(G.W.): 325g±5g
• DMX Signal Port: Green terminal
• Protection: Short circuit, over temperature, over current protection, auto recovery.
• 5-year warranty
